Used in machine and frame constructions requiring high strength in order to obtain strong connections.
Bedding connection can be made via assembly of linear guideways of 90 degrees from two surfaces on formation of machine coordinate axes.

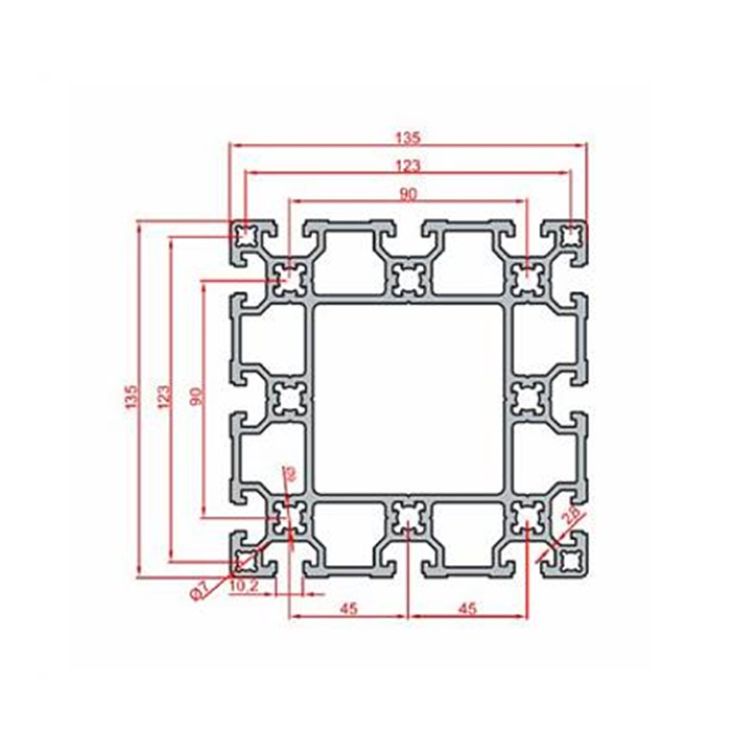

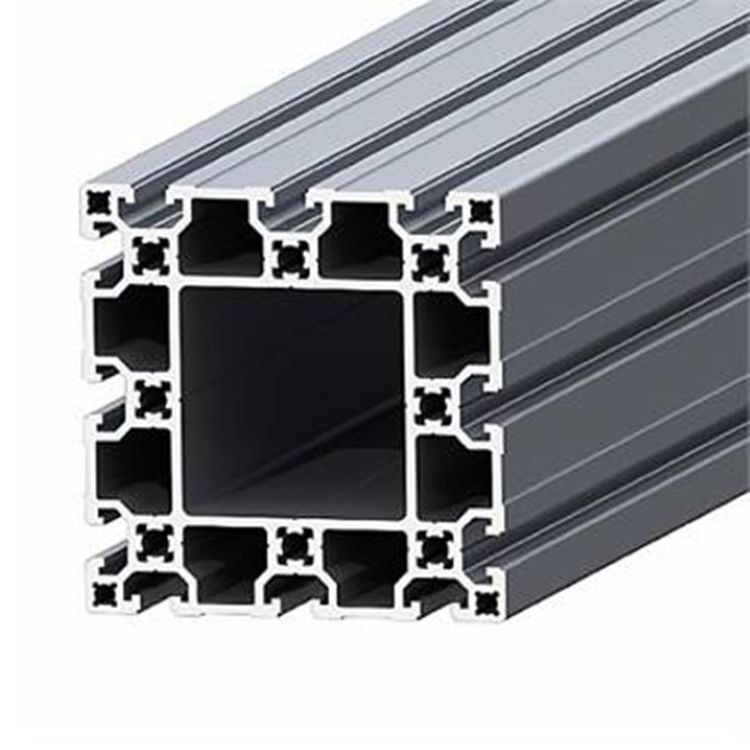

135×135 Aluminium Profile
Κωδικός: M 32
Επικοινωνία
| Διαστάσεις | Υλικό | L (mm) | Ix | Iy | Wx | Wy | Πεδίο | Μάζα |
| 135x135 | 6063 T5 | 6000 | 897.64 | 897.64 | 132.91 | 132.91 | 44.52 | 12.06 |
F (Load)
E = Modulus of elasticity
L (Profile length)
W = Nonuniform Load Amount (N)
I = Moment of inertia
