Suitable for use in machine frames and bedding bodies requiring high strength.
Triple slot provides wide bedding surface and strong connection.

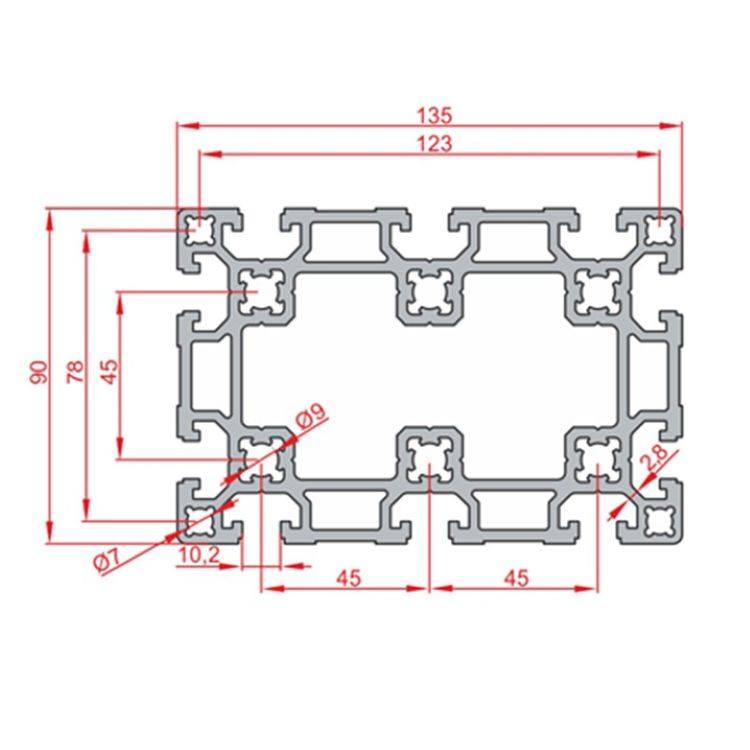

90×135 Aluminium Profile
Κωδικός: M 32/A
Επικοινωνία
| Διαστάσεις | Υλικό | L (mm) | Ix | Iy | Wx | Wy | Πεδίο | Μάζα |
| 90x135 | 6063 T5 | 6000 | 313.64 | 653 | 69.18 | 96.74 | 34.42 | 9.13 |
F (Load)
E = Modulus of elasticity
L (Profile length)
W = Nonuniform Load Amount (N)
I = Moment of inertia
